Fox 38 Float Volume Spacer - Bottomless Token - 234-44-189 - Fork
Fox 38 Float Volume Spacer - Bottomless Token - 234-44-189 - Fork
Regular price
£5.75 GBP
Regular price
Sale price
£5.75 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

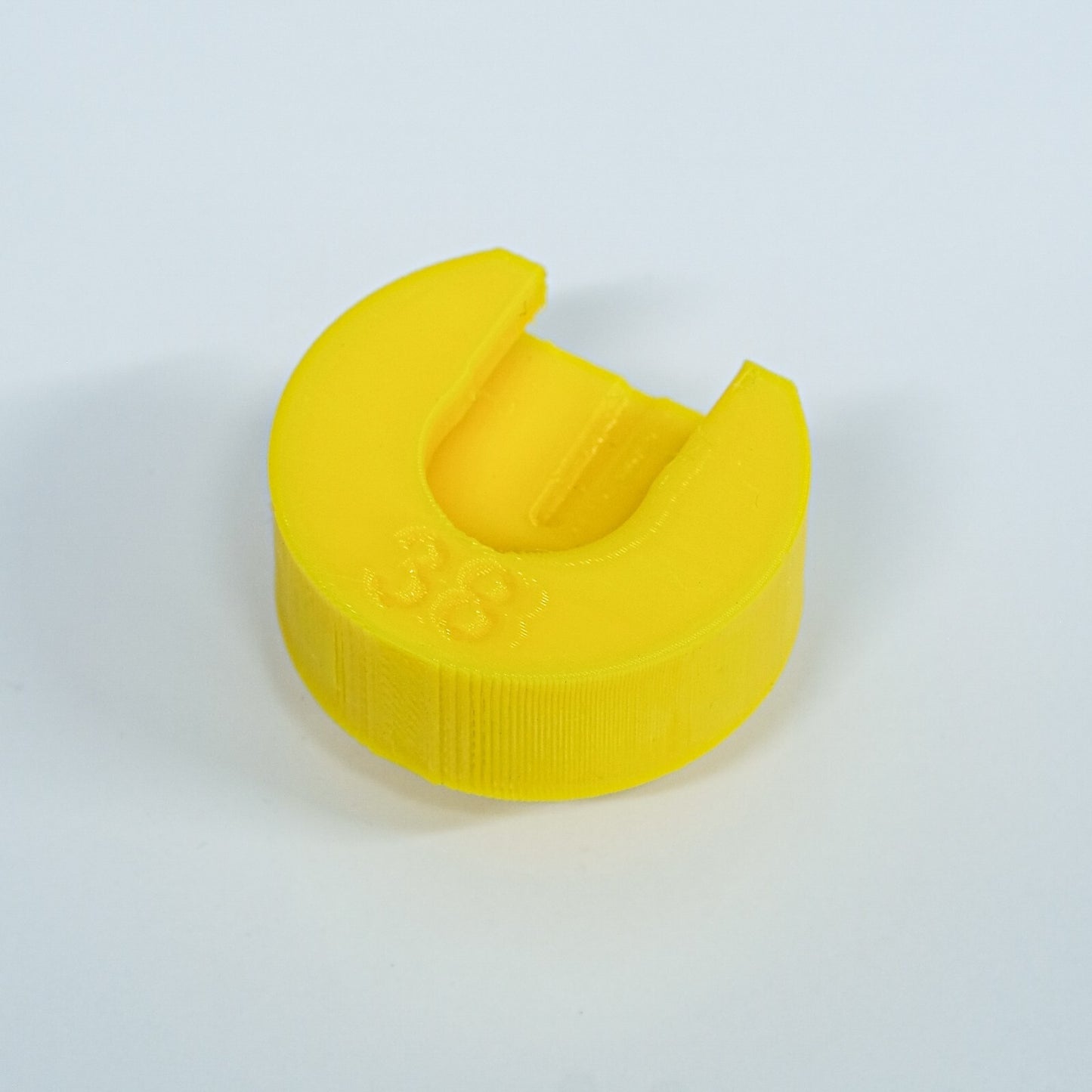

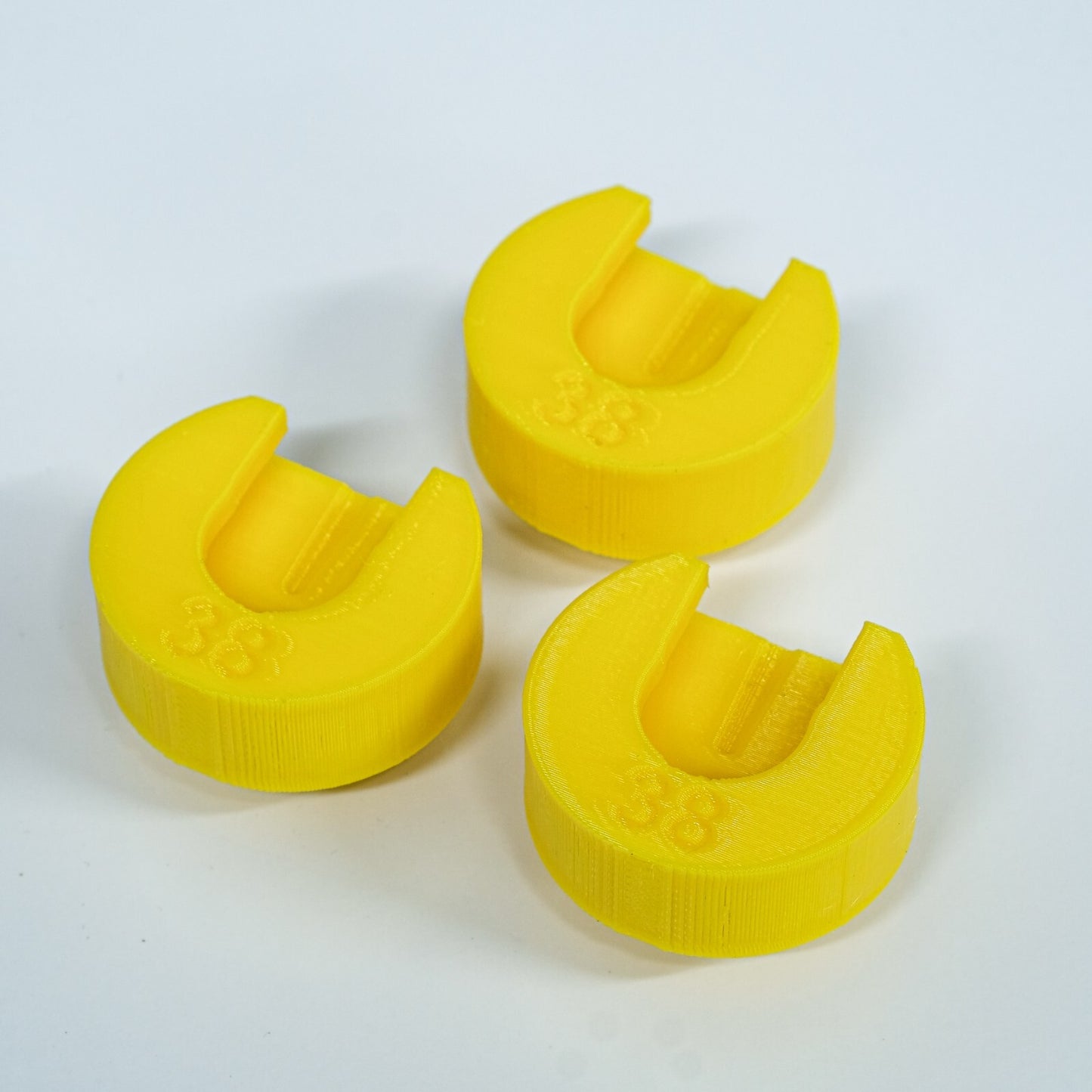

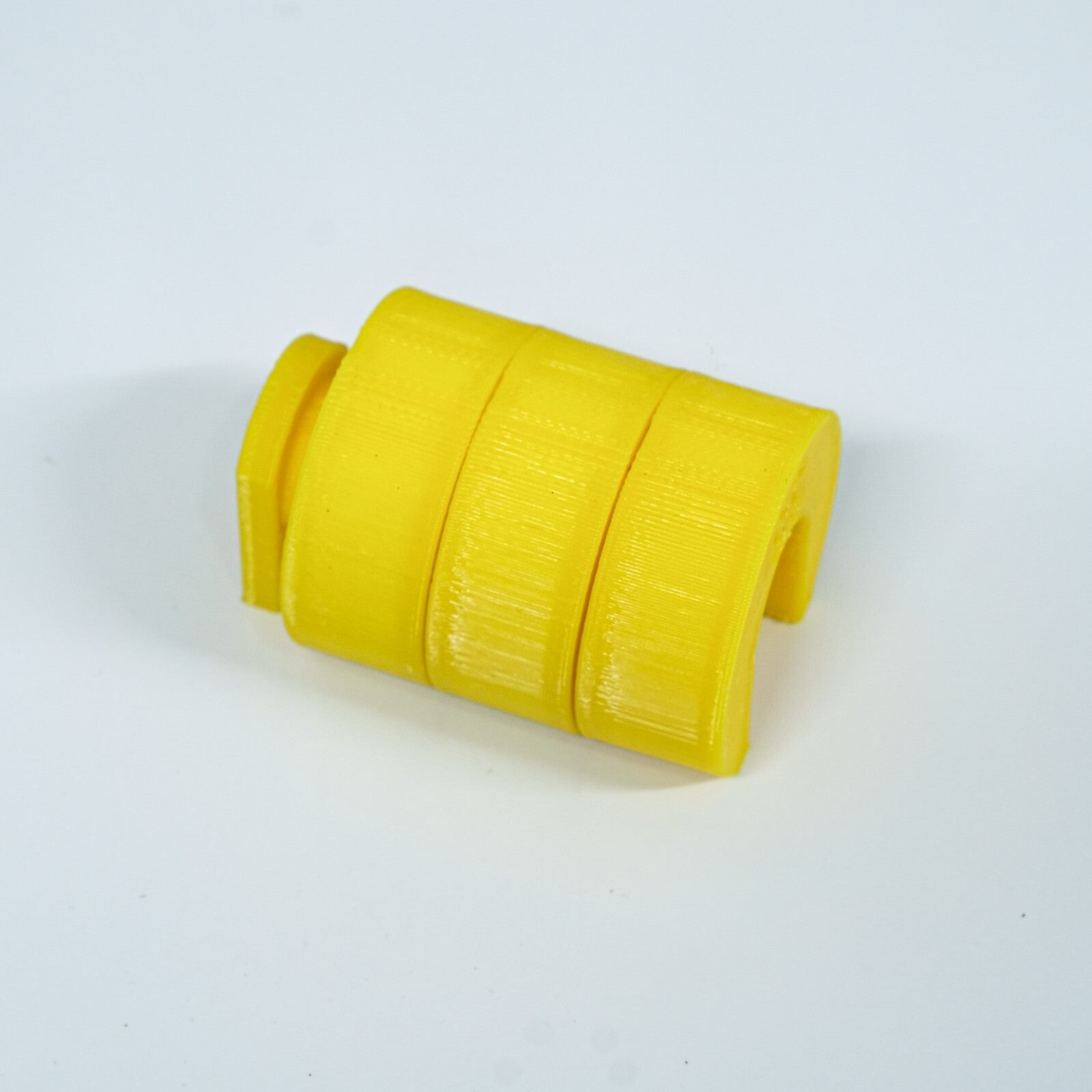

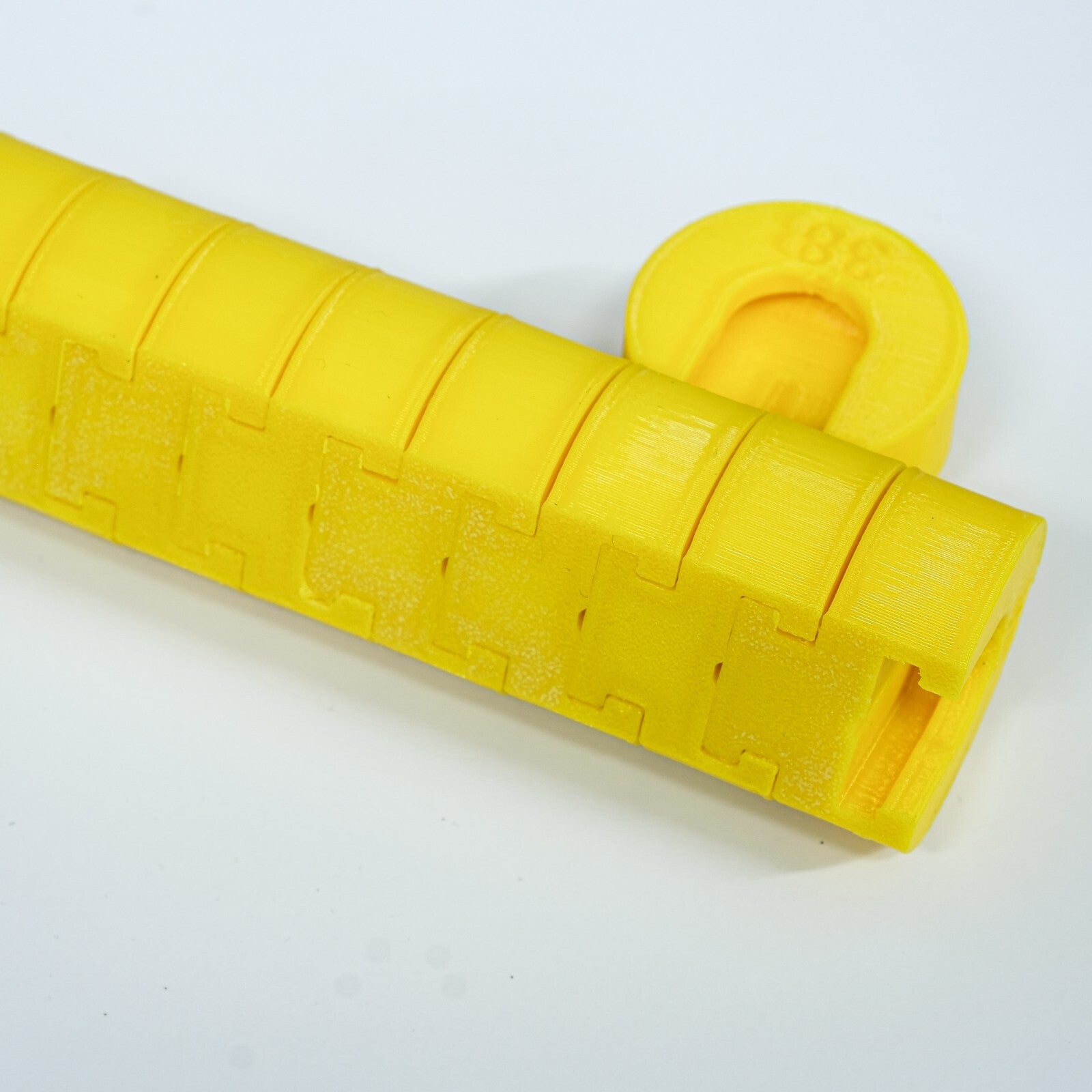

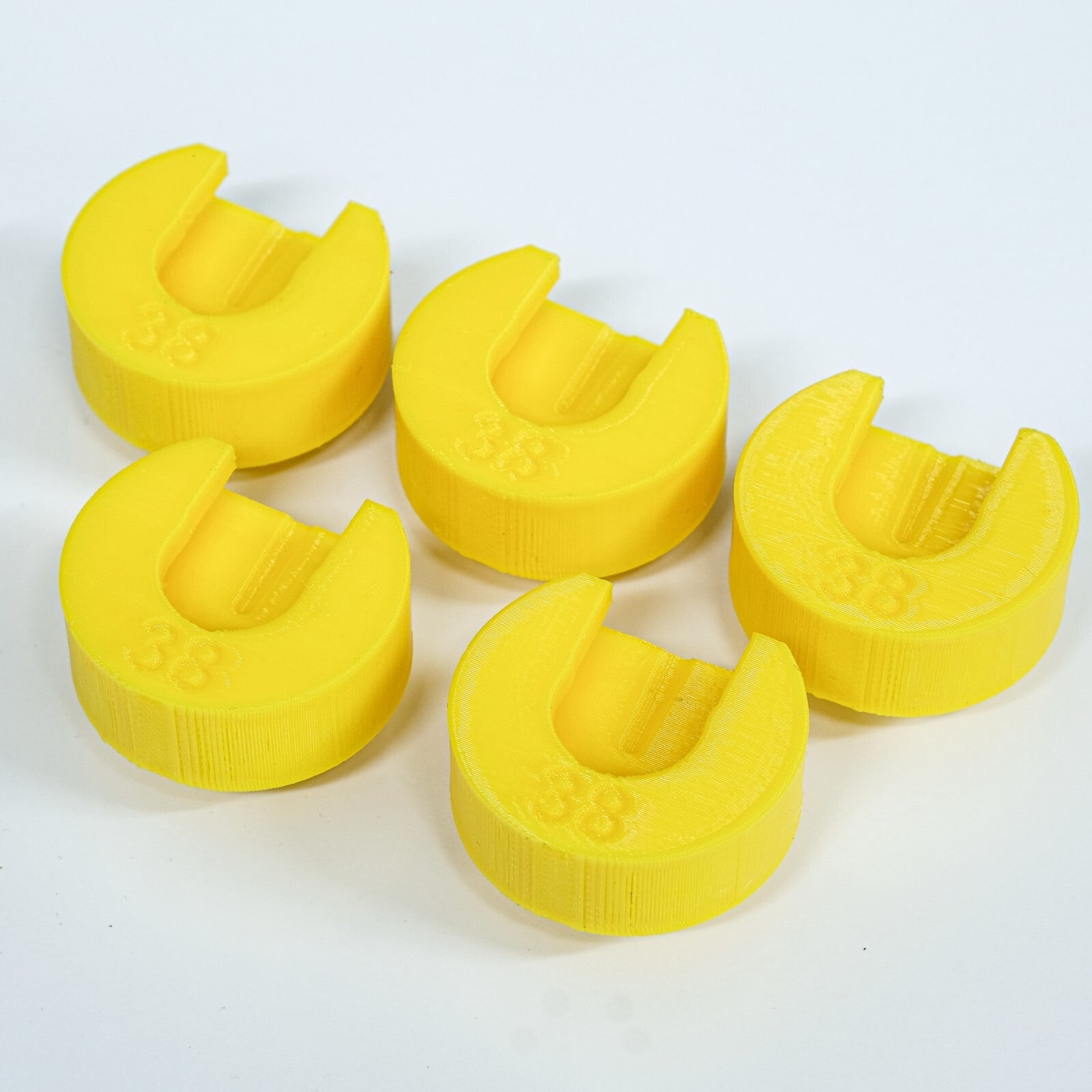

Fox 38 Float Volume Spacer - Bottomless Token - 234-44-189 - 803-01-663
10cc per spacer
These are aftermarket versions that are 3D printed with oil safe plastic, and are compatible with the original Fox tokens, they are printed with 100% solid infill.
Changing volume spacers in the 38 is an easy internal adjustment that allows you to change the amount of mid stroke and bottom out resistance.
If you have set your sag correctly and are using full travel (bottoming out) too easily, then you could install one or more spacers to increase bottom out resistance.
To see how many you can fit please refer to the charts below
| 38 FLOAT Volume Spacer Configurations | ||
| Travel | Volume Spacers Factory Installed | *Max Volume Spacers |
| 180 | 1 | 4 |
| 170 | 2 | 5 |
| 160 | 3 | 6 |
| 150 | 4 | 6 |
| 38 FLOAT E-Bike+ Volume Spacer Configurations | ||
| Travel | Volume Spacers Factory Installed | *Max Volume Spacers |
| 180 | 2 | 4 |
| 170 | 3 | 5 |
| 160 | 4 | 6 |
| 150 | 5 | 6 |
Note: This product is 3D-printed. As a result, minor surface variations and subtle imperfections may be present, which are inherent to the 3D printing process. These do not affect the product's functionality or durability. I and others have been using these items as a rider for some time now.
