Fox 32 Volume Spacer NA2 Blue - Bottomless Token - 234-04-811
Fox 32 Volume Spacer NA2 Blue - Bottomless Token - 234-04-811
Regular price
£5.75 GBP
Regular price
Sale price
£5.75 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

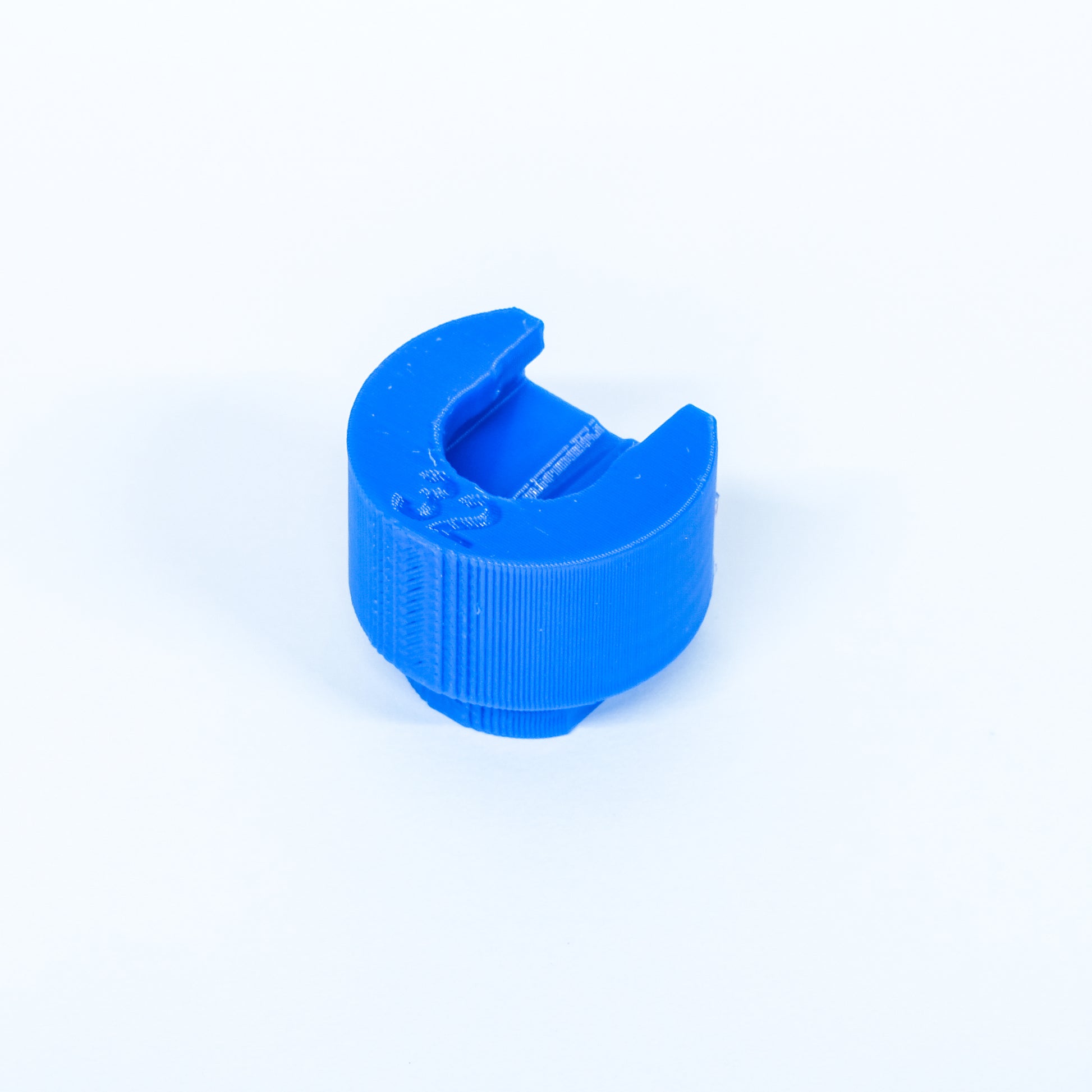

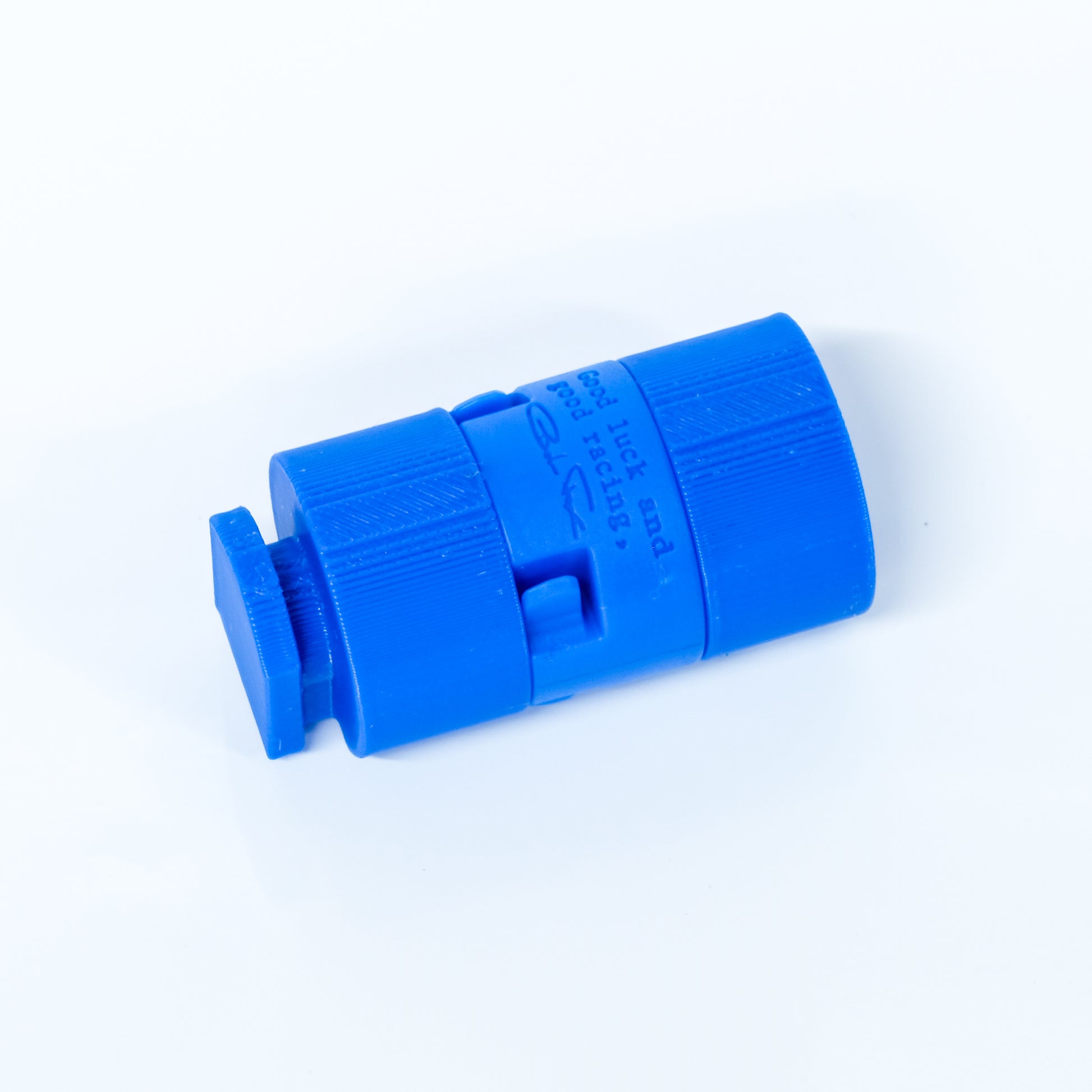

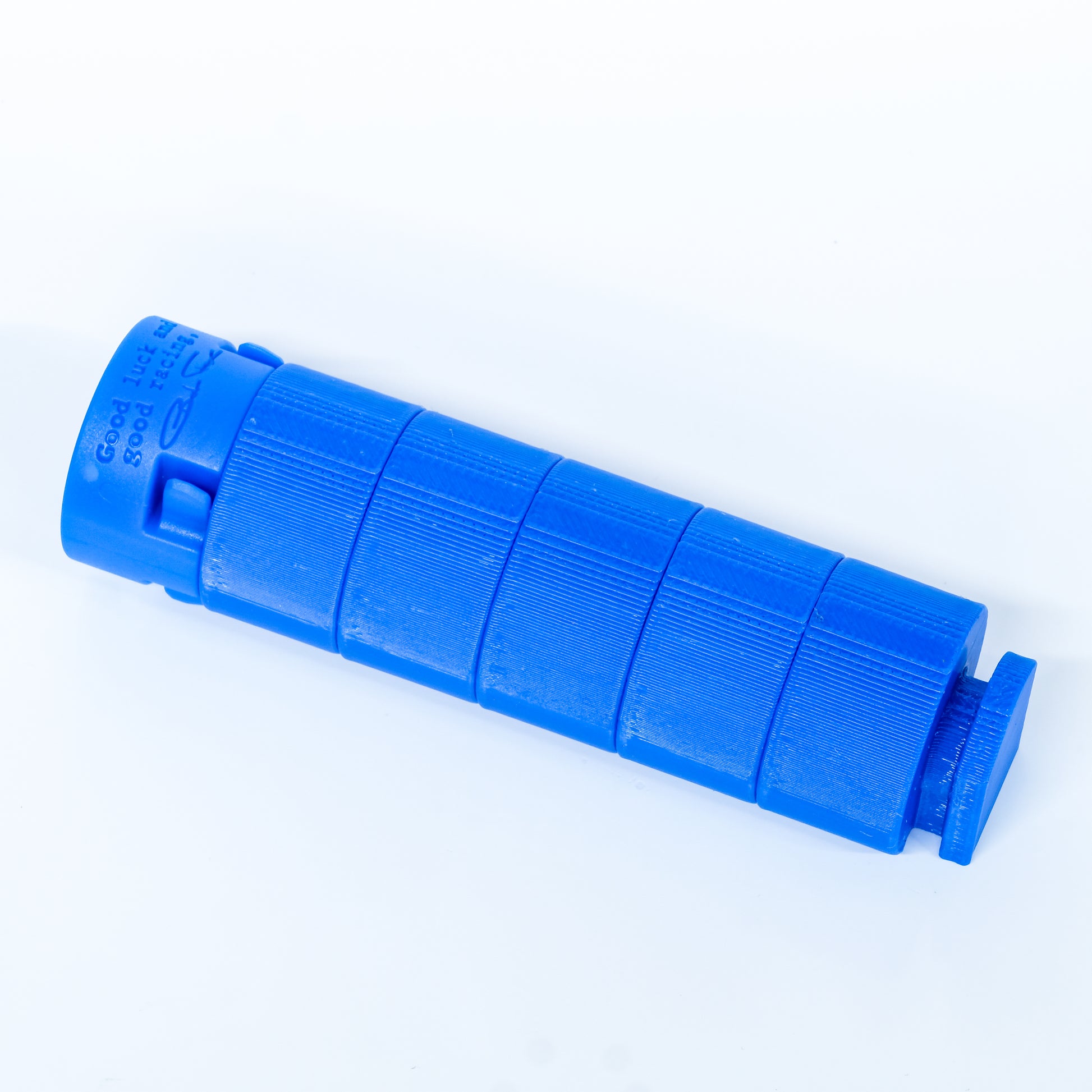

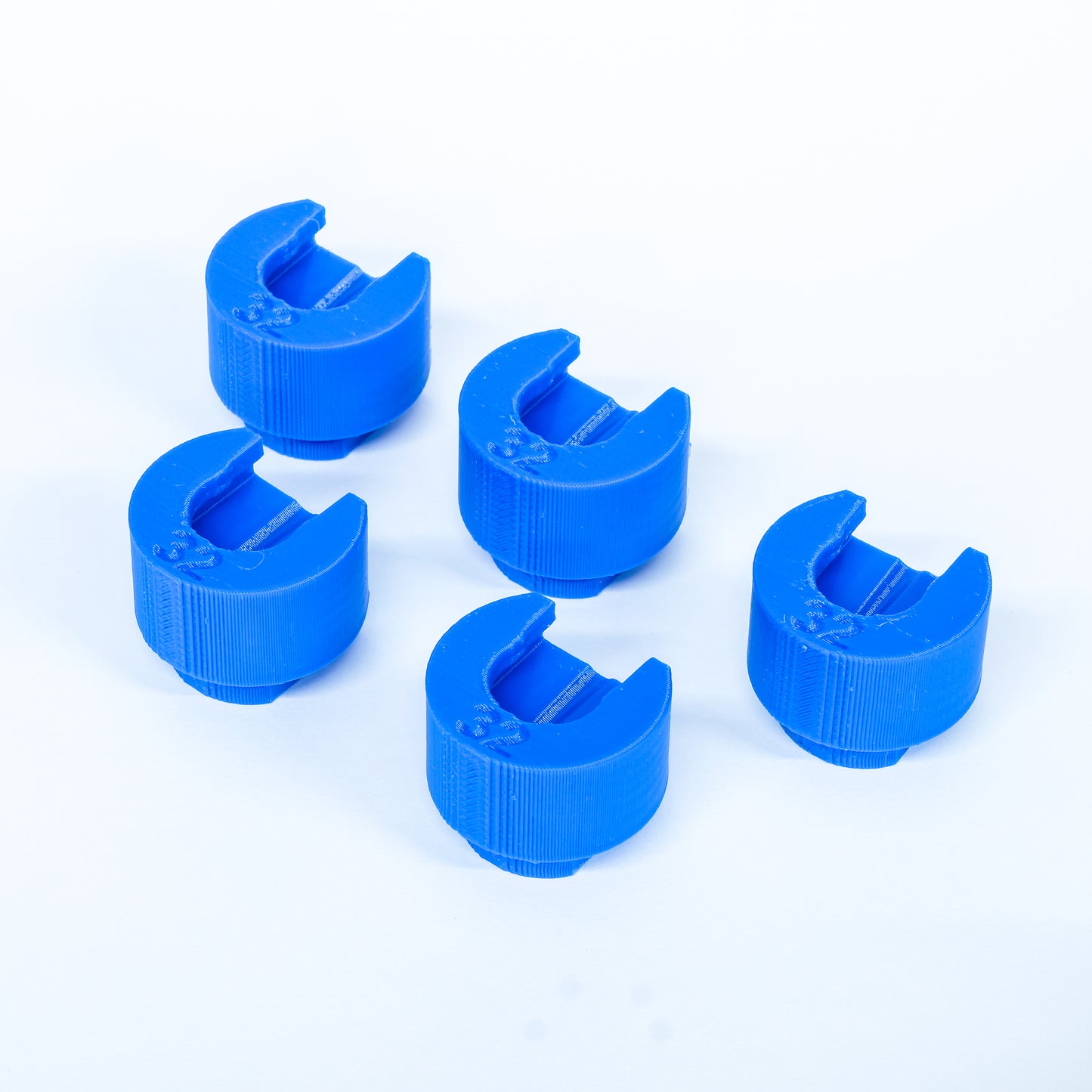

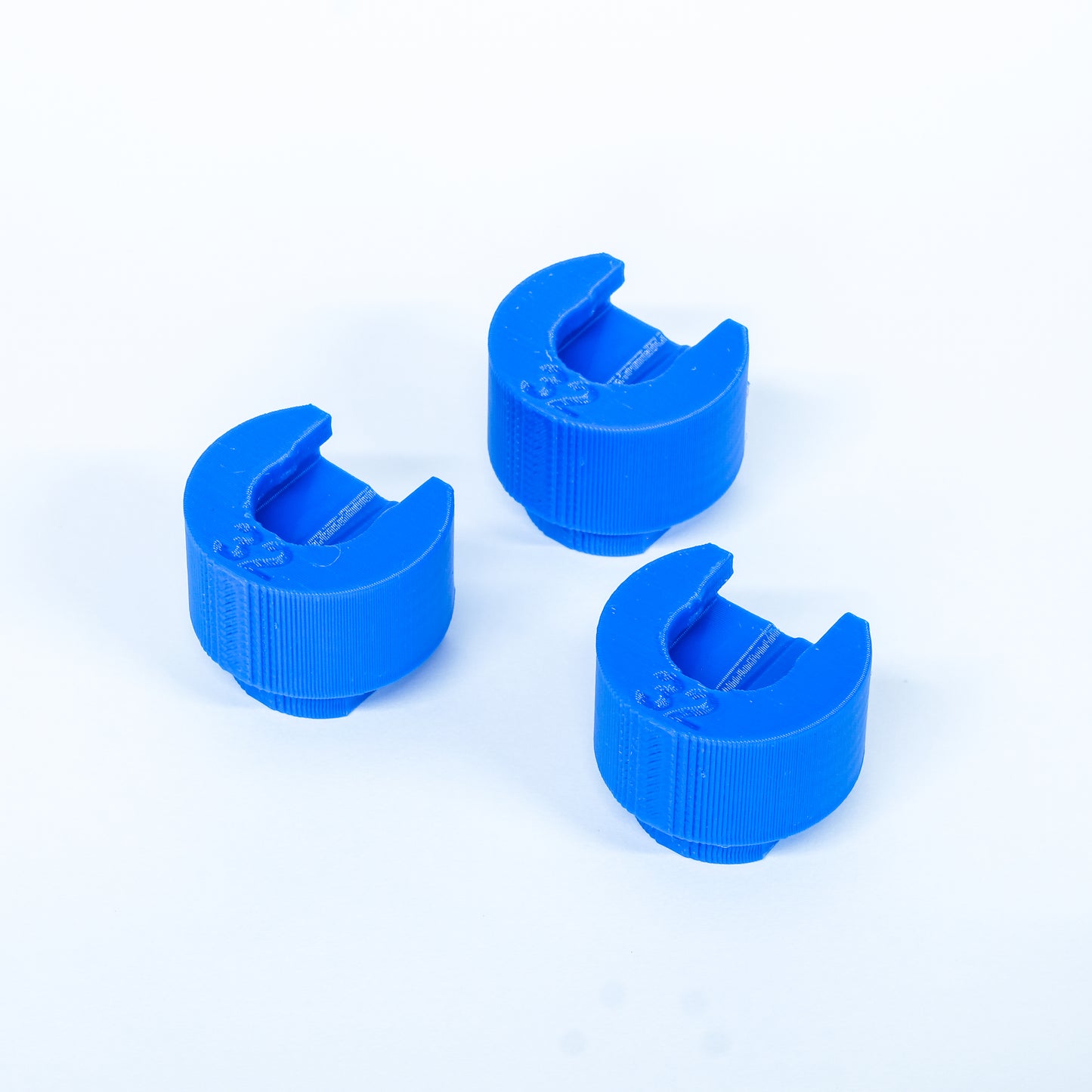

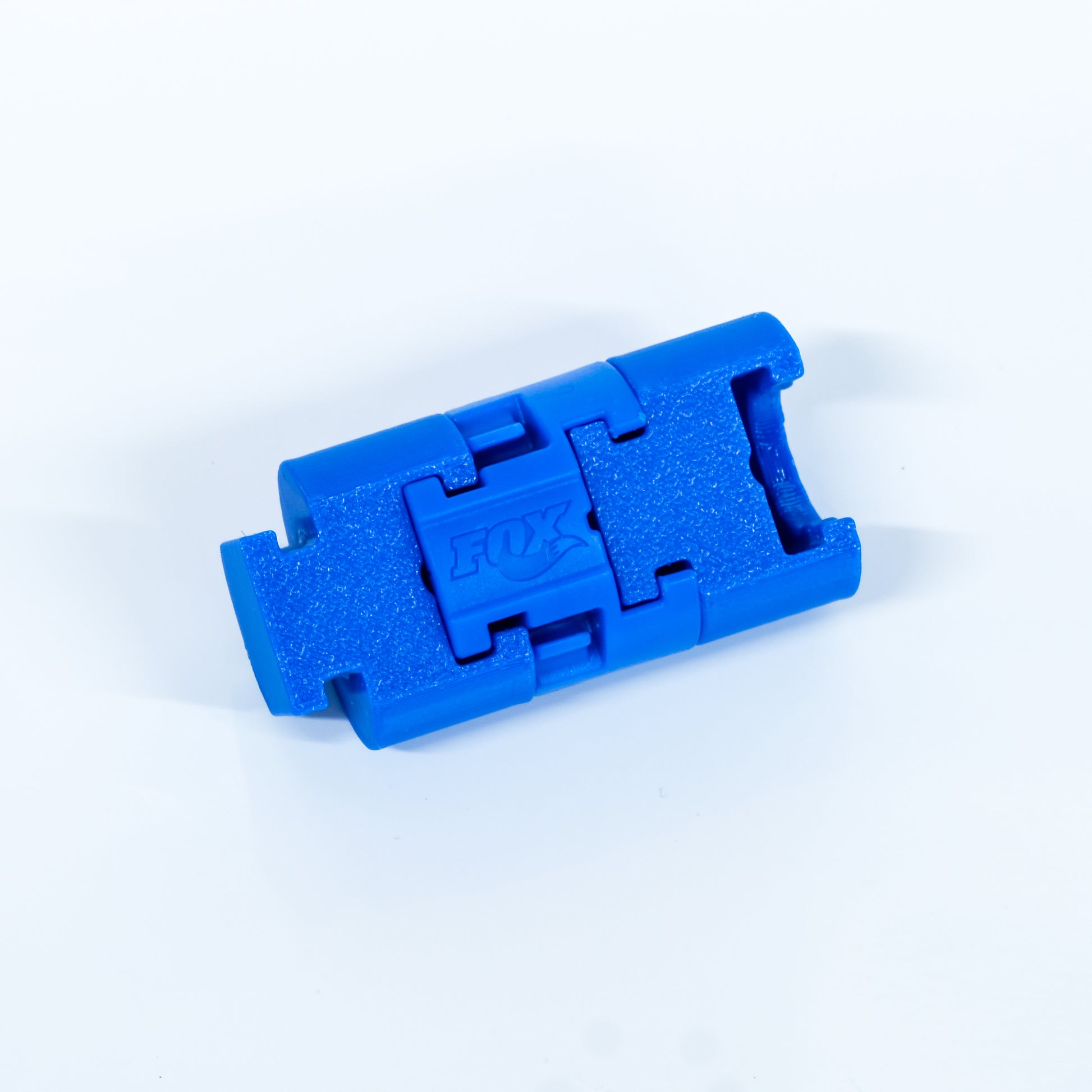

Fox NA2 32 / 32 Step-Cast Volume Spacers
These are aftermarket versions of 234-04-811 that are 3D printed with oil safe plastic, and are compatible with the original Fox tokens. This is used on 32mm NA2 forks from 2016 onwards.
Note - If you have a 32 Rhythm you need the pink version - 234-04-735
Changing volume spacers in the 32 is an easy internal adjustment that allows you to change the amount of mid stroke and bottom out resistance.
If you have set your sag correctly and are using full travel (bottoming out) too easily, then you could install one or more spacers to increase bottom out resistance.
To see how many you can fit please refer to the charts below
| 32 FLOAT Volume Spacer Configuration | ||
| Travel | Volume Spacers Factory Installed | *Max Volume Spacers |
| 120 mm | 1 | 4 |
| 110 mm | 2 | 4 |
| 100 mm | 2 | 4 |
| 32 Step Cast FLOAT Volume Spacer Configuration | ||
| Travel | Volume Spacers Factory Installed | *Max Volume Spacers |
| 100 mm | 1 | 4 |
Note: This product is 3D-printed. As a result, minor surface variations and subtle imperfections may be present, which are inherent to the 3D printing process. These do not affect the product's functionality or durability. I and others have been using these items as a rider for some time now.
