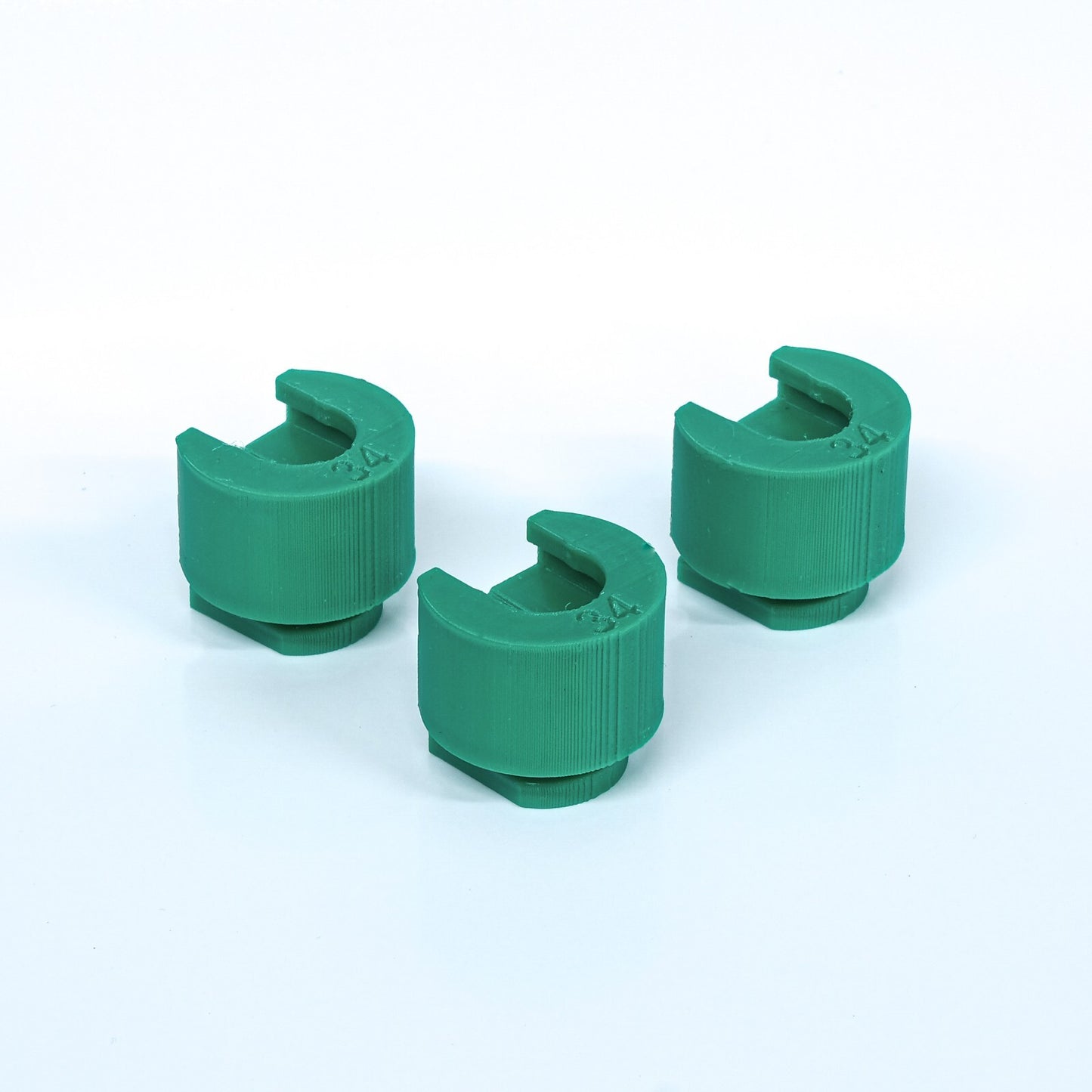

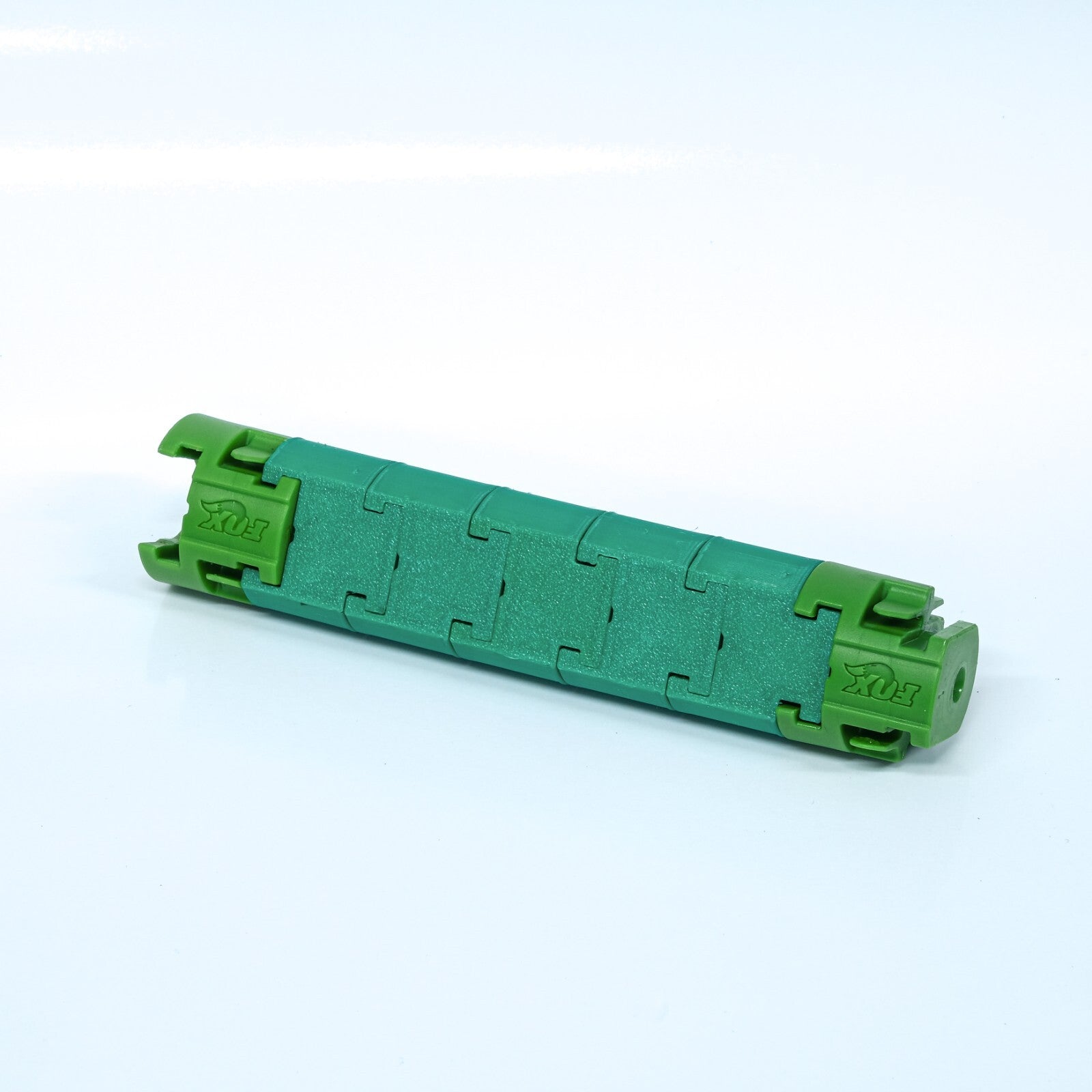

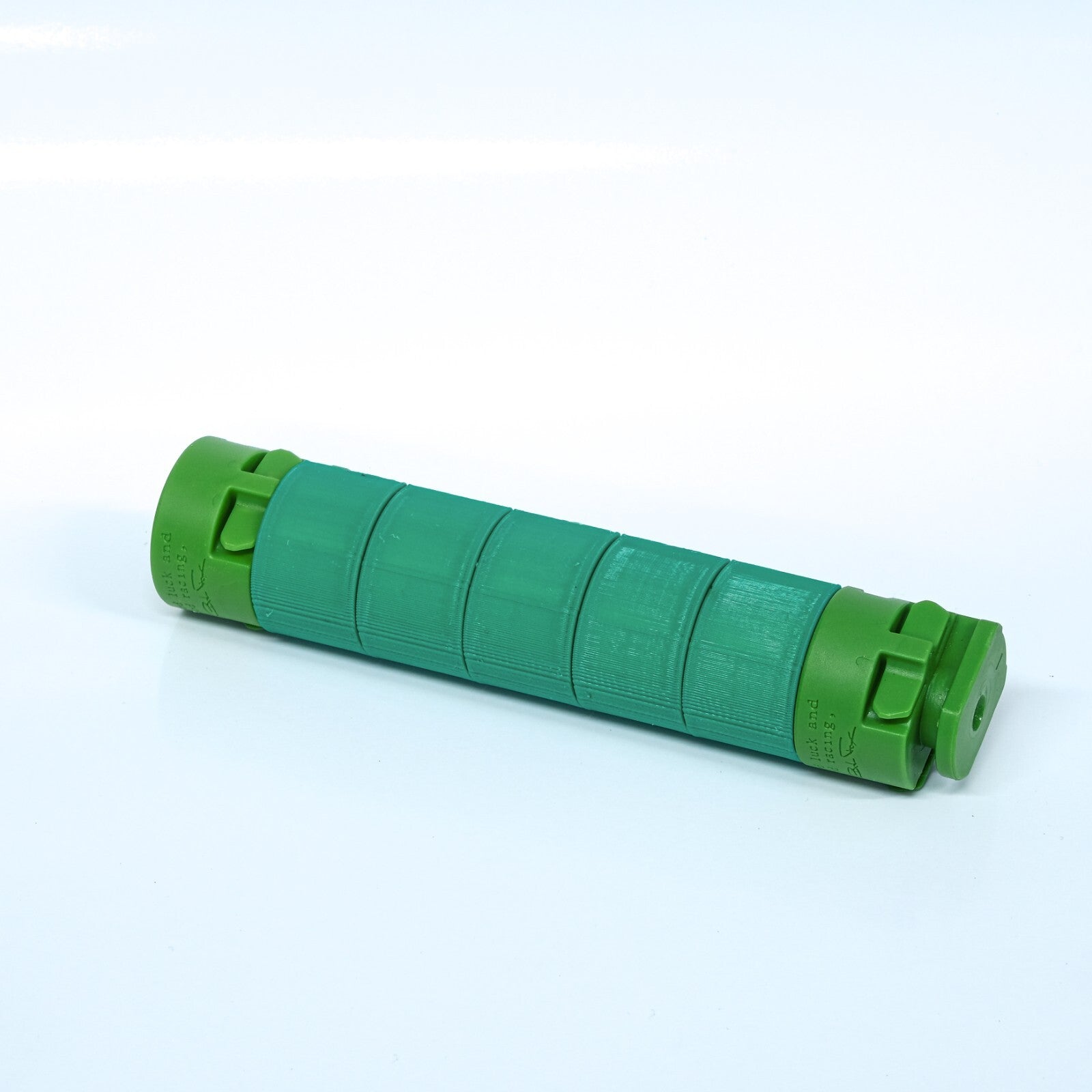

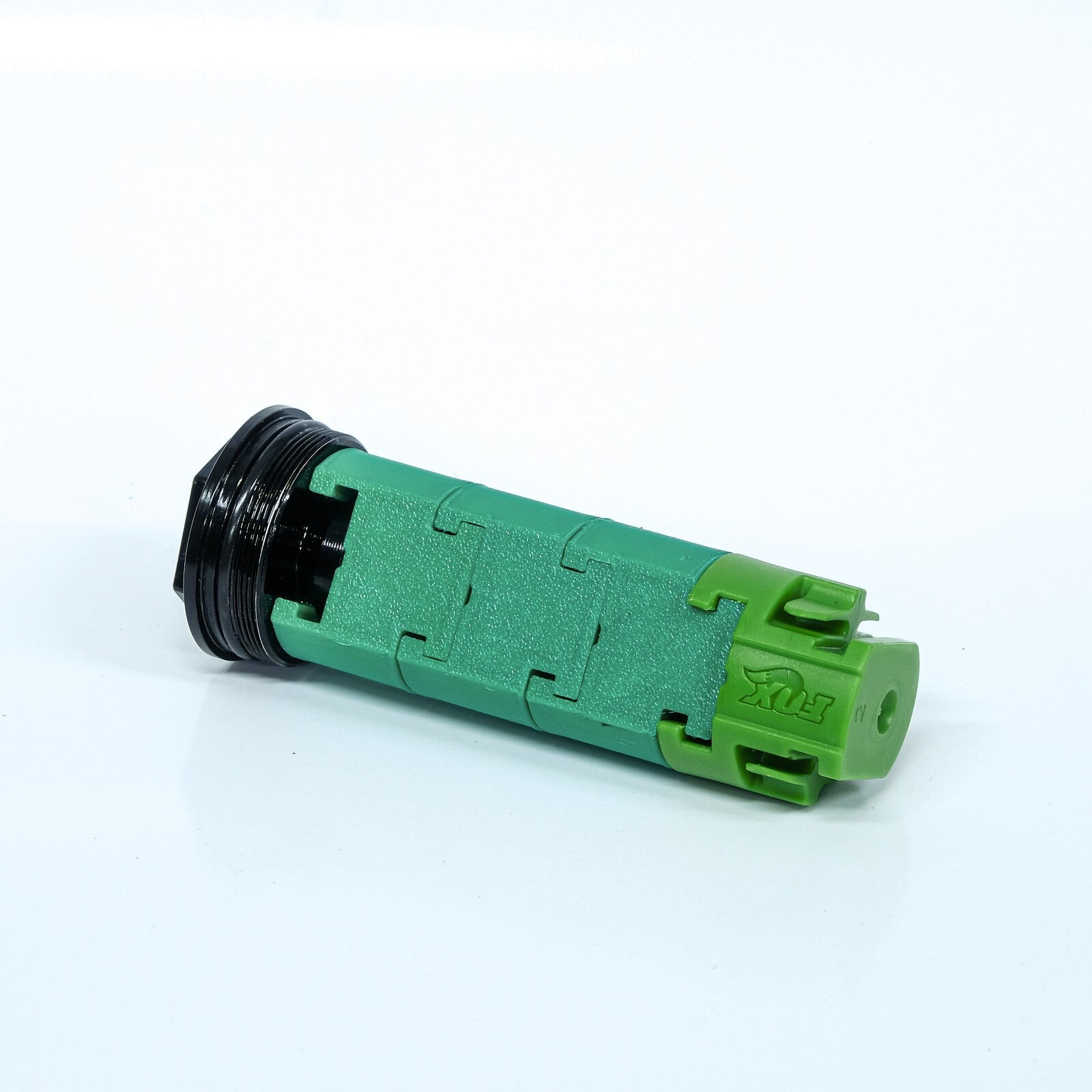

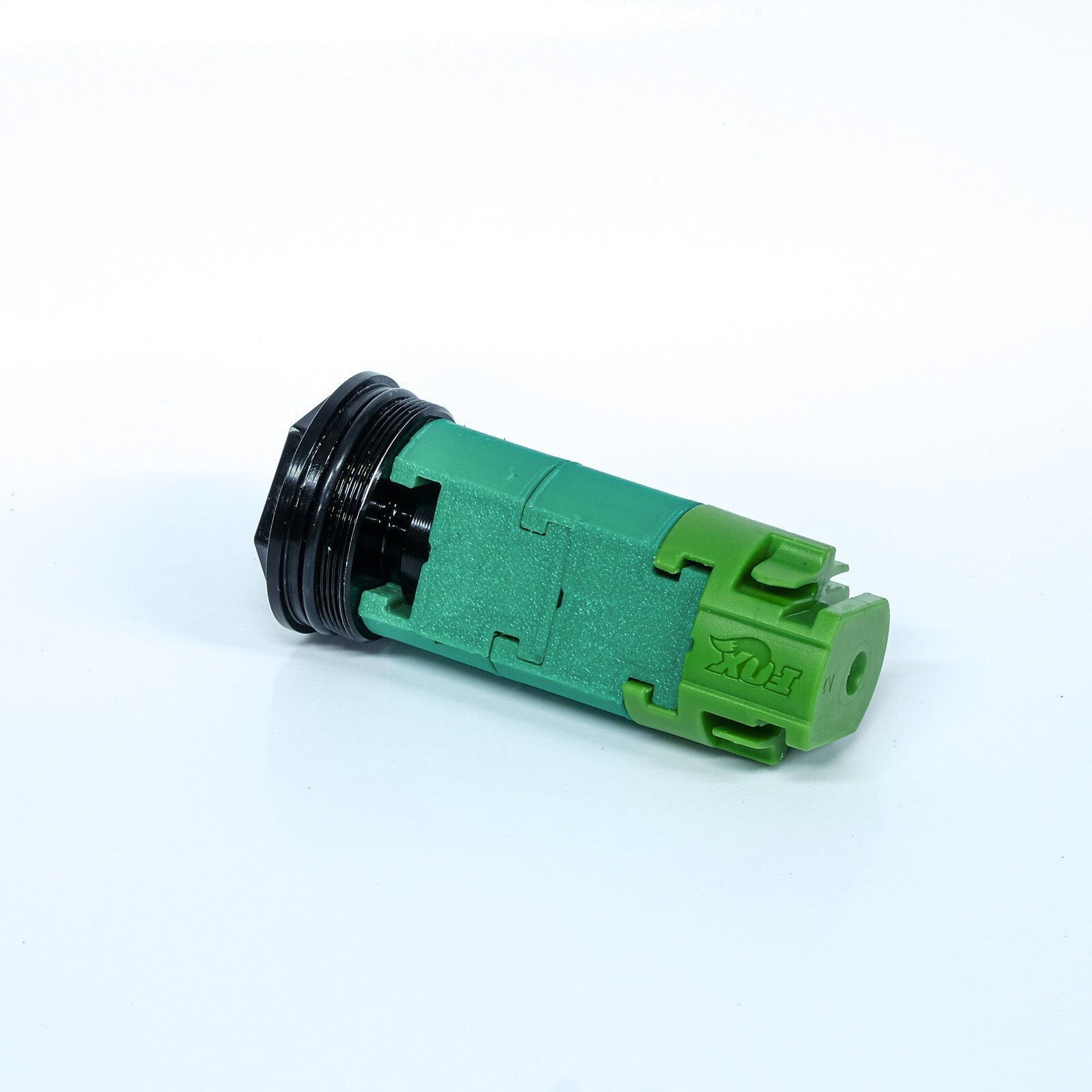

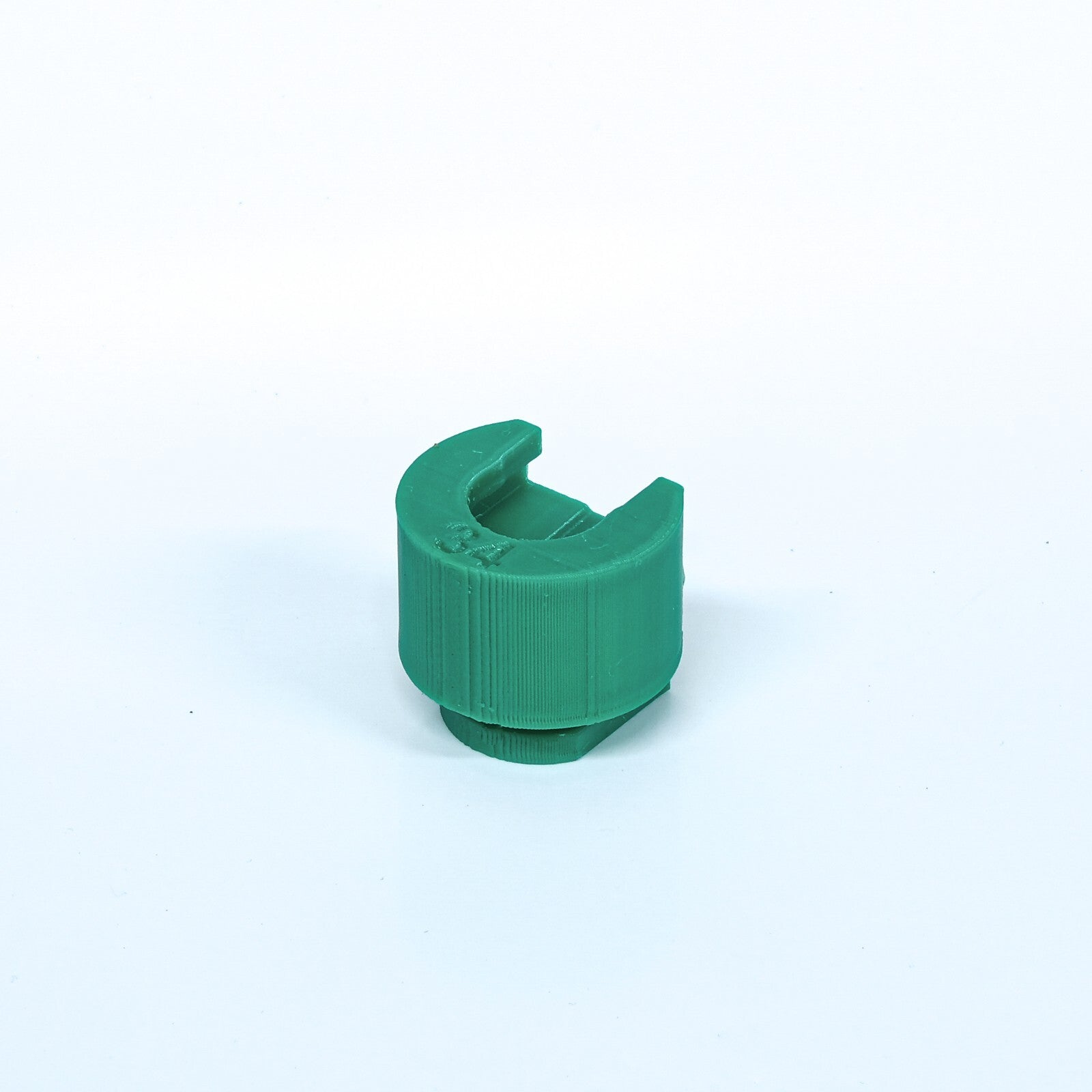

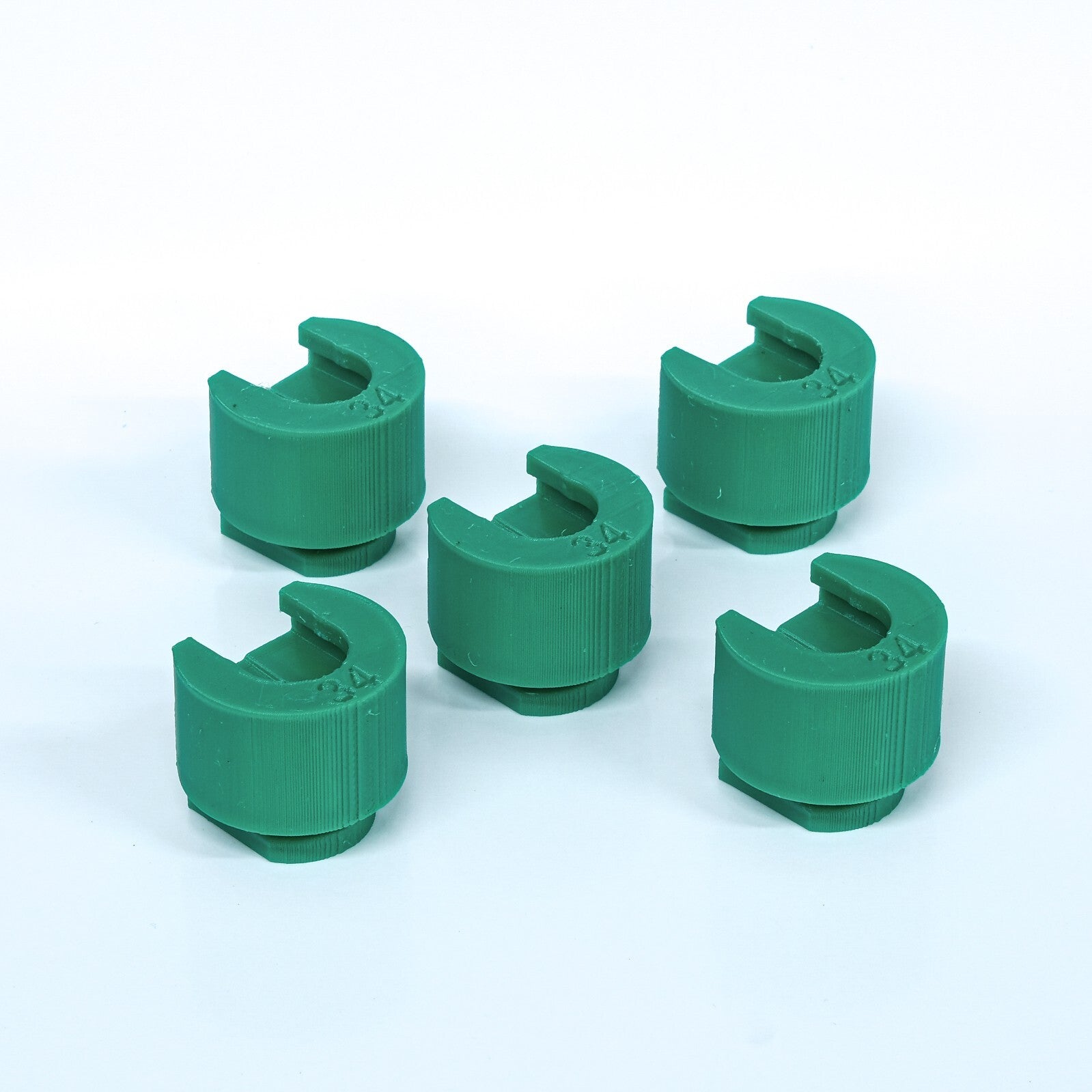

These are aftermarket versions that are 3D printed with oil safe plastic, and are compatible with the original Fox 34 volume tokens, they are printed with 100% solid infill.

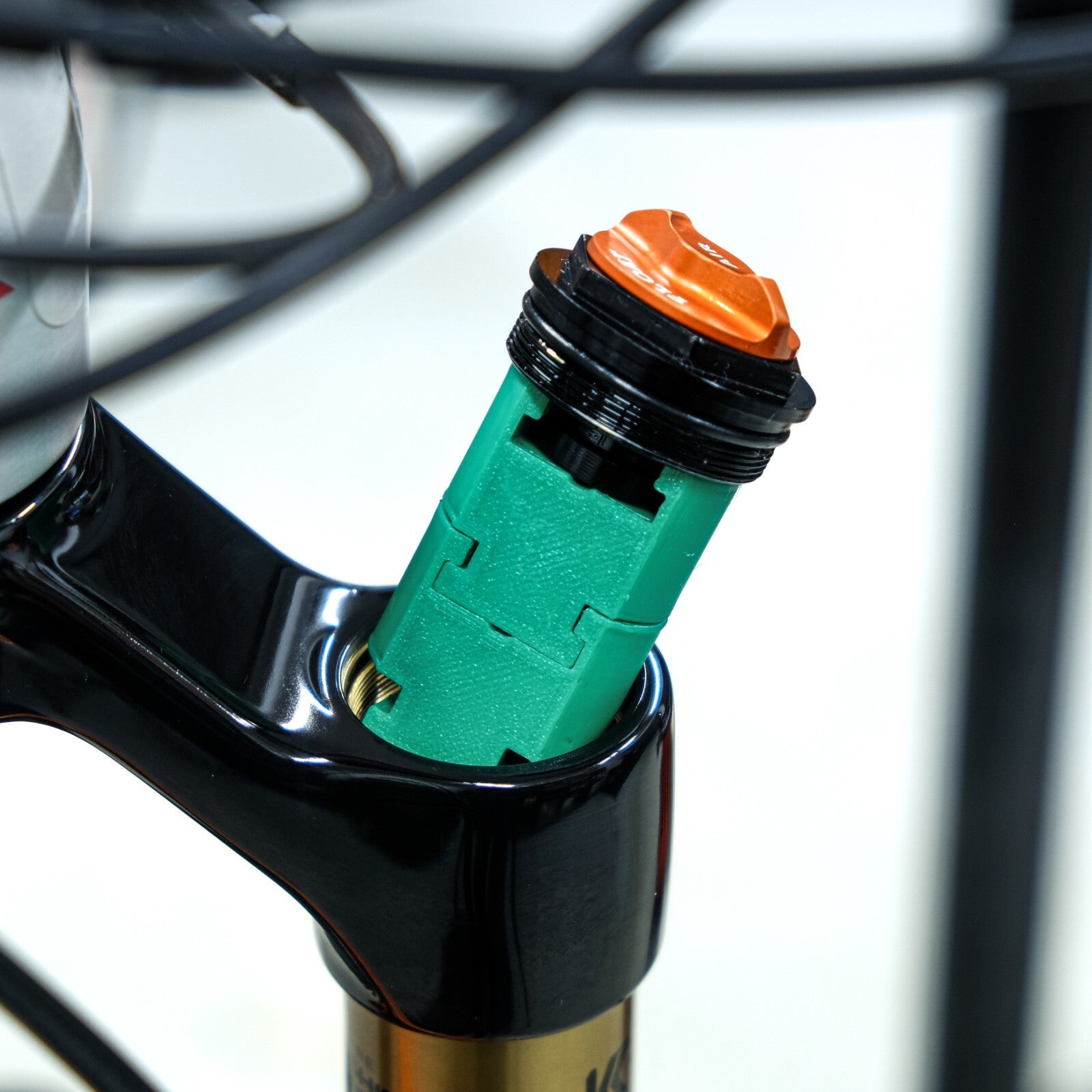

Changing volume spacers in the Fox 34 fork is an easy internal adjustment that allows you to change the amount of mid stroke and bottom out resistance.
If you have set your sag correctly and are using full travel (bottoming out) too easily, then you could install one or more spacers to increase bottom out resistance.
To see how many Fox 34 volume spacers you can fit please refer to the charts below
34 Step Cast FLOAT Volume Spacer Configuration
Travel
Volume Spacers Factory Installed
*Max Volume Spacers
120 mm
2
4
110 mm
3
5
100 mm
4
5
34 FLOAT Volume Spacer Configuration
Travel
Volume Spacers Factory Installed
*Max Volume Spacers
160 mm
1
4
150 mm
2
5
140 mm
2
5
130 mm
3
6
120 mm
5
6
110 mm
6
7
34 Rhythm Volume Spacer Configuration
Travel
Volume Spacers Factory Installed
*Max Volume Spacers
150 mm
0
4
140 mm
0
4
130 mm
1
5
120 mm
2
5
110 mm
3
6
100 mm
4
6
Note: This product is 3D-printed. As a result, minor surface variations and subtle imperfections may be present, which are inherent to the 3D printing process. These do not affect the product's functionality or durability. I and others have been using these items as a rider for some time now.
